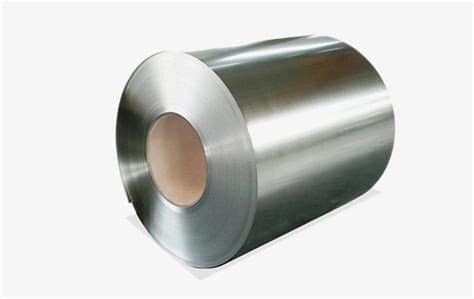

TINPLATE
Tinplate is a thin steel coated with tin. Tinplate is characterized by its beautiful metallic luster
as well as excellent properties in corrosion resistance, solderability and weldability.
| Product | Tinplate Sheet |
| Standard | ASTM A623, EN 10203, GB2520-2000,JISG3303-2002 and DINEN10202-2001 |
| Material | MR SPCC |
| Thickness | 0.15- 0.45mm (tolerance -/+0.01 mm) |
| Width | 700~1050mm (Tolerance: 0~3mm) or |
| Cutting Length | 700~1150mm (Tolerance: 0~3mm) or as coils |
| Annealing | BA & CA |
| Temper | T1 T2 T3 T4 T5 DR7 DR8 DR9 TH550 TH580 TH620 TH660 |
| Tin Coating | 1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/㎡ |
| Surface finish | Bright, Stone, Silver, Matt |
| Coil Diameter | ID 420/ 508/610mm, OD from 1,000 to 1,250m |
| Coil Weight | 3~10 MT |
| Package | Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires. |
| Applications | Metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
PACKING
OUR COMPANY
Shanghai Quanjiang Industrial Co.,ltd is a large-scale enterprise integrating manufacturing and sales
( international export). Established in 2001. With an area of more than 40 000 square meters. It's
located in Shanghai,China, We has advanced production equipment, equipped with pushing
machine, press, large heat treatment furnace,chamfering machine,sawing machine,large
sandblasting machine and other key equipment and a variety of testing instruments
