Place of Origin:
China
Brand Name:
QuanJiang
Certification:
ISO9001
Model Number:
307# tin end bottom
Contact Us

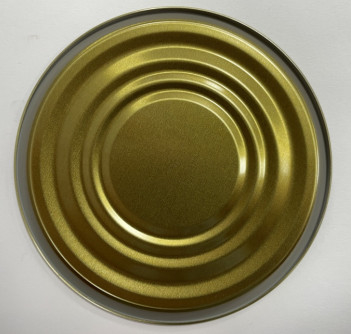

603#153mm silver gold organosol paste tinplate metal cans lid bottom cover tin lid
| Model NO. | Outer Diameter(mm) | Chuck Diameter(mm) | Round edge height(mm) | Dry rubber content(mg) | ||||||
| Standard | Target | Standard | Target | Standard | Target | Standard | Tolerance | |||
| 603D | 163.60—163.85 | 163.70 | 3.10—3.30 | 3.15 | 2.00—2.20 | 2.10 | 110-130 | 95-145 | ||
| Hook side | ≥3.07((mm) | moisture(%)≤4 | Conductivity 5(Ma) per piece, not exceeding 3(Ma) on average | Depth of disk | 0.60±0.10 | |||||
| 20%CuSO4 | After soaking in 20% copper sulfate for 3 minutes, there was no obvious rust | |||||||||
| Boiling detection | After high temperature sterilization at 121℃ for 30 minutes, the inner and outer coating film has no loss of light, no foaming, no wrinkling, no whitening. | |||||||||
| antiacid | After high temperature sterilization at 121℃ for 30 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blistering. | |||||||||
| Resistance to sulfur | After high temperature sterilization at 121℃ for 60 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blackening. | |||||||||
| inspection of appearance | No obvious scratches, leakage coating, no oil, clean and smooth, without loss of round, no obvious deformation; Good straightness when stacked. | |||||||||
Food can bottom ends is used both tin can lid and tin can bottoms;
By different coating inside, our can bottom ends could be used for different
content,including meat can, tomato paste can, fish can, fruit can, and dry food.
The external side printing is customizated, your logo and brand could be shown
on it. Our full specification could satisfy most of demand in metal package,
customized dimension and long term cooperation is welcome.
| Size # | Can Diameter/mm | Chuck Diameter/mm | Internal Coating | External Coating |
| 200 | 50 | 49.27 |
Gold Lacquer; Clear Lacquer; Aluminum Paste; White Coating; Buff Coating; BPA Free; |
Gold Lacquer; Clear Lacquer; Printing; Plain Surface; Laminating; |
| 202 | 52 | 51.99 | ||
| 209 | 62 | 61.9 | ||
| 211 | 65 | 65 | ||
| 214 | 70 | 69.2 | ||
| 300 | 73 | 72.57 | ||
| 307 | 83 | 82.96 | ||
| 401 | 99 | 98.6 | ||
| 502 | 127 | 126.05 | ||
| 603 | 153 | 153.04 |
lid Production Process
PARTNER
CERTIFICATE
Information Required with orders and inquirys
Orders and inquiried shall be accompanied by the following information.
1. products name and grade
2.coaing and mass( for Tinplate only),temper grade,finish, and products size.
3.rolling direction
4.quantity
5.application and delivery date
6.number of sheets per packaging( for cut to length products)
7.inside diameter amd maximum acceptable unit coil weight (for coils products).
8.film type,color, contents,and other details of use and environment.
9.other special requirements,if any.
Send your inquiry directly to us
