Place of Origin:
China
Brand Name:
QuanJiang
Certification:
MILL CERTIFICATE
Model Number:
0.18mm 0.22mm 0.45mm TINPLATE
Contact Us
ETP T57 T61 T65 DR550 DR620 DR660 T4 0.18mm 0.22mm 0.45mm tinplate ETP TFS
Tinplate products are used for making all types of containers such as food cans, beverage
cans and artistic cans, those are necessary to our life and living.
Tinplate is a kind of cold-rolled,low-carbon thin steel plate or steel tape electroplated
with pure tin for commercial use. Tin is corrosion and rust-proof. Tinplate thus combines
the strength and formability of steel and the corrosion resistance,solderability and
pleasing appearance of tin to offer a new material that is resistant to corrosion, non-toxic,
highly strong and ductile.
|
Features of Tinplate Products |
|
| Excellent Corrosion Resistance | By selecting a proper coating weight, appropriate corrosion resistance is obtained against container contents |
| Excellent Paintability & Printability | Printing is beautifully finished using various lacquers and inks. |
| Excellent Solderability & Weldability | TIN PLATE is widely used for making various types of cans by soldering or welding. |
| Excellent Formability & Strength | By selecting a proper temper grade, appropriate formability is obtained for various applications as well as the required strength after forming. |
| Beautiful Appearance | Electrolytic ETP is characterized by its beautiful metallic luster. Products with various kinds of surface roughness are produced by selecting the surface finish of the substrate steel sheet. |
Tinplate Welding Tin Plate Sheet
| Material | tinplate or tin free steel |
| Thickness | 0.15 to 0.50mm |
| Width | 600 to 1020 mm |
| Length | 600 to 1200 mm or Coils |
| Tin coating | 1.1/1.1g/m²,.2.2/2.2g/m², 2.8/2.8g/m², 5.6/5.6g/m²,8.4/8.4g/m²,or customized |
| Temper | T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 ,DR9 |
| Annealing | CA(Continuous annealing) and BA(Box annealing) |
| Surface | Bright/Stone/Silver/Matte finish with passivation treatment; DOS oil |
| MOQ | 25 tons or one container |
| Payment | T/T |
| Reference standard | GB/T 2520-2008, JIS G3303-2008 ,DIN EN 10203-1991 and ASTM A623M-2011 |
| Applications: | Widely used for metal packaging industry. Such as making cans for food, tea, oil, paints, chemicals, aerosol, gifts, printing |

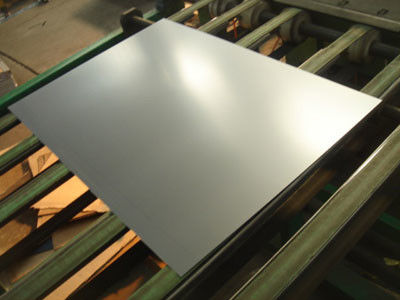

Electrolytic Tin Plate Show
TINPLATE WORKSHOP SHOW
| Applications of Tinplate and TFS |
| ETP is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP. |
| TFS are most frequently used for can tops, screw and lug caps, snap and press-on closures and shallow-drawn food cans. |
PARTNER
CERTIFICATE
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need
to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose
other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of
the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.
